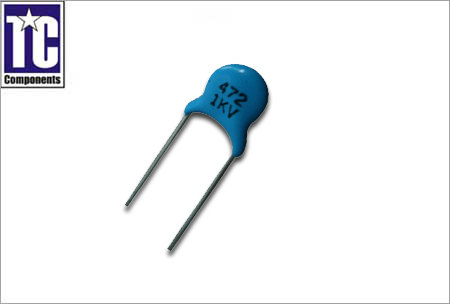

Mid – High Voltage Capacitors       Features Epoxy Coating for all parts, Wide range of general purpose applications   General Specification Operating Temp. Range Y5P, Y5U, Y5V -25? to +85?, Z5U,Z5V +10? to +85? Capacitance Within the specified tolerance at 1KHz±20%, 1.0±0.2Vrms Capacitance Tolerance K:±10%, M:±20%, Z: +80% -20% Dissipation Factor (DF) Y5P, Y5U, Z5U; DF=2.0%, BN: DF=0.5% Y5V, Z5V; DF=3.5% at 1KHz±20%, 1.0±0.2Vrms Rated Voltage 1KV to 6KV Dielectric Withstanding Voltage 1.5UR+500V for 2 to 5 S (charge /Discharge current≤50mA ) (IR) Insulation Resistance 10000MΩ min at 500VDC and 1 minute electrification   Capacitance Specification Rated Voltage Capacitance (pF) Temperature Characteristics DC Y5P (B) Y5P (BN) Y5U (E) Y5V(F) Z5U (E) Z5V (F) 1KV 100~680 100~680   1000 1000~1500   820~1000 820~1000 1000~15000 1500~2200 2200 3300~4700 1200~1500 1200~1500 2200 3300 3300   1800~2000 1800~2000 3300 4700 4700 6800 2200 2200 4700 6800   10000 2700~3300 2700~3300 6800 10000 6800 15000 3900~4700 3900~4700 10000 15000 10000 22000 5600~6800 5600~6800   22000   33000 8200~10000 8200~10000       47000 2KV 100~470 100~470 470~1000 1000~1500 1000 1000~15000 560~680 560~680 1500 2200 1500 2200 820~1200 820~1200 2200 3300 2200   1500~1800 1500~1800 3300 4700 3300 3300~4700 2200 2200 3900 6800 4700 6800 2700 2700 4700 10000 6800 10000 3300~3900 3300~3900 6800 15000 10000   4700 4700 10000 22000     3KV 100~180     1000     220~470   1000 2200 1000         3300     560~680   2200   2200   820~1000     4700     1200~1500   3300   3300   Units of 100V and over are available upon request
