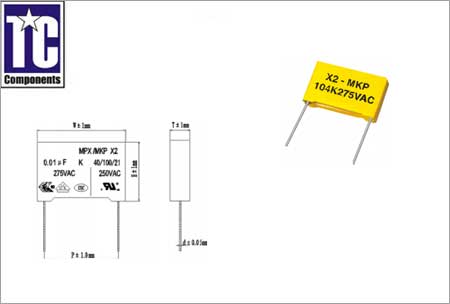

Metallized Polypropylene Film Capacitors



Construction

X2 MKP is non-inductively wound with metalized Polypropylene film as the dielectric / electrode  with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.


Features
Box type provides the identical outer appearance
Very low loss at high frequency, suitable for high current
High insulation resistance, long life due to self-healing effect
Withstanding 2.5 KV impulse Voltage, class X2
As an across-the-line type noice suppression capacitors, and suitable for AC purpose

Specification
Description : X2
Reference Standard : IEC60384-14
Climatic Category : 40/100/21
Rated Temperature : 100℃
Rated Voltage : 275VAC
Capacitance Range : 0.0047uF~1uF
Capacitance Tolerance : ±10%(K)
Voltage Proof : CR≤1.0uF: 1800VDC(2s); CR>1.0uF: 4.3URVDC(2s)
Dissipation Factor : ≤1.0%(25℃±5℃,1KHz)
Insulation Resistance : ≥30000MΩ, CR≤0.33uF ; ≥10000MΩ·S, CR>0.33uF (100VDC,
