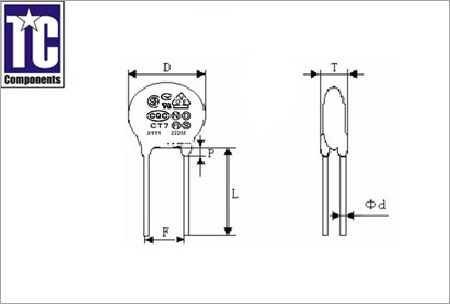

X1Y1 Series Ceramic Capacitor



Features
Ideal for across the line applications
Compact size
Cost effective product

X1Y1 General Specification


Operating Temp. Range

-25 to +85

Capacitance

Within the specified tolerance at 1KHz±20%, 1.0±0.2Vrms

Capacitance Tolerance

K: ±10%, M: ±20%

Dissipation Factor (DF)

≤2.5% at 1KHz±20%, 1.0±0.2Vrms

Dielectric Withstanding Voltage

4000Vac for 2~5S

(IR) Insulation Resistance

10000MΩ min at 500VDC and 1 minute electrification
