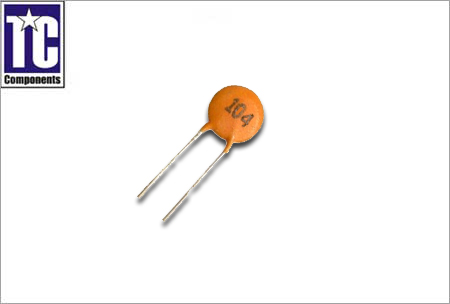

CS1 Semi-Conductive Dielectric Ceramic Capacitor (Class III)



Features

Large Capacitance in Small Size Used in Low Impedance Circuit of Low IR

General Specification
Operating Temp. Range -25 +85deg C
Capacitance Within the specified tolerance at 1KHz±20%, 1.0±0.2Vrms
Capacitance Tolerance K:±10%, M:±20%, Z: +80% -20%
Dissipation Factor (DF) Y5P:DF=3.5%, Y5U; DF=0.5% Y5V; DF=7.5% at 1KHz±20%, 1.0±0.01Vrms
Rated Voltage 16V , 25V , 50V
Dielectric Withstanding Voltage 1.5UR for 2 to 5 S (charge /Discharge current=50mA )
(IR) Insulation Resistance 16V: 100M or 10MO uF 1minute electrification 25V. 50V 1000M or 20MO uf 1 minute electrification
